Hybrids 90, 180 Degree

Hybrids 180° Degree, 3 db couplers SMA 0.5-40 Ghz
Hybrids 90° Degree, 3 db couplers SMA 0.5-26.5 Ghz

Features Applications
Wide range up to 40 Ghz PCS, GSM, LTE, cellular
Low insertion loss Test equipments
Excellent isolation Communication systems
Rugged shielded housing Radar systems
Compact housing Balanced amplifiers
RoHS compliant Modulators

SigaTek's 90 and 180 degree 3 dB hybrid dividers/combiners cover a wide range of frequencies in octave and multioctave bands up to 26.5 Ghz. These 90 and 180 degree 3 dB hybrids behave similar to power dividers with the difference that their outputs are 90 degree and 180 degree out of phase making them unique for some applications.

90° degree 3 dB Hybrid Couplers, 180° degree 3 dB Hybrid Couplers

Microwave Wideband Octave Multioctave 3 dB dividers

Quadrature 3 dB hybrid couplers


IN STOCK FOR SAME DAY DELIVERY

To view Real-Time stock quantity and price click on the ORDER link below.


Part
Number
PDF-Data
Frequency
Range
GHz
Coupling
dB Max
Amplitude
Balance
dB Max
Isolation
dB Min
Phase
Balance
deg. Max
VSWR
Max
Power
Input
watts Max
ADD
TO CART
*

180 degree power dividers combiners SMA, 2.92mm connectors

SH10550 0.5-1.0 3.2 0.5 0.4 22 1808 1.30:1 80 ORDER
SH11551 1.0-2.0 3.2 0.6 0.5 22 1808 1.40:1 80 ORDER
SH12552 2.0-4.0 3.2 0.6 0.5 20 18010 1.60:1 80 ORDER
SH13553 4.0-8.0 3.2 0.6 0.5 18 18010 1.90:1 80 ORDER
SH14554 4.0-18.0 3.2 1.2 0.6 16 18010 1.60:1 20 ORDER
SH15555 2.0-12.0 3.2 1.5 0.7 18 18010 1.90:1 20 ORDER
*SH16556 6.0-40.0 4.6 1.6 1.2 15 18016 1.90:1 20 ORDER
*SH17556 3.0-40.0 4.6 1.6 1.3 15 18018 1.90:1 20 ORDER
SH18557 1.0-12.4 4.6 1.4 0.65 20 1808 1.65:1 20 ORDER
SH19557 1.0-18.0 5.0 1.6 0.75 18 18010 1.75:1 20 ORDER
SH20557 1.0-26.5 5.4 2.2 1.0 16 18015 1.80:1 20 ORDER

90 degree power dividers combiners SMA, 2.92mm connectors

SQ10500 0.5-1.0 3.2 0.3 0.6 25 903 1.20:1 100 ORDER
SQ11501 1.0-2.0 3.2 0.3 0.6 25 903 1.20:1 100 ORDER
SQ12502 2.0-4.0 3.2 0.3 0.6 22 904 1.20:1 100 ORDER
SQ13503 4.0-8.0 3.3 0.3 0.7 18 904 1.25:1 100 ORDER
SQ14504 2.0-8.0 3.5 0.5 0.8 16 906 1.30:1 100 ORDER
SQ16506 4.0-18.0 3.6 0.8 0.8 15 908 1.50:1 100 ORDER
SQ17503 6.0-12.4 3.4 0.8 0.8 17 906 1.40:1 100 ORDER
SQ18507 0.5-3.0 3.8 0.8 0.8 20 906 1.40:1 100 ORDER
SQ19508 0.6-2.6 3.6 0.6 0.8 20 906 1.40:1 100 ORDER
SQ20509 0.5-10.0 4.0 0.9 0.8 16 908 1.50:1 20 ORDER
*SQ21510 4.0-26.5 4.0 1.0 0.9 14 9010 1.60:1 20 ORDER
* Connectors are 2.92mm female
- Custom and optimized designs are available.
* Please note if a specific part is out of stock or the quantity does not meet your demand, call the sales office at 973-706-8475 or e-mail us at sales@sigatek.com with the part number and the quantity that you need and we shall respond to you promptly.

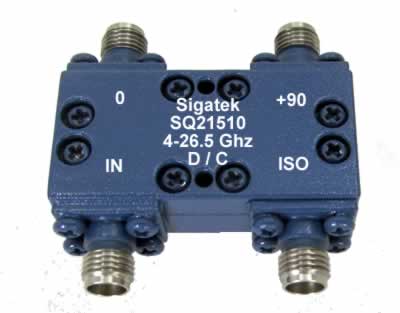

3 dB Hybrid coupler 180 degree

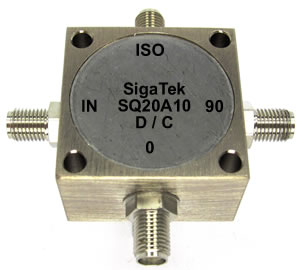

Quadrature 3 dB Hybrid 90 degree

Wideband Hybrids 3 db 180 degree  0.5-18 Ghz Quadrature hybrid coupler 3 db 90 degree 0.5-18 Ghz
