Features Applications
2 Way up to 40 Ghz 4 Way up to 40 Ghz
Connectorized PCS, GSM, LTE, 5G
Low insertion loss Test equipments
Flat loss Communication systems
RoHS compliant Radar Systems

For N, BNC, TNC connector and custom applications consult sales office at E-MAIL

Resistive power dividers SMA or 2.92mm connectors, frequencies up to 40 Ghz

Power dividers splitters resistive 50 ohm 2 way and 4 way


Resistive power dividers offer a wide frequency range of operation DC-40 Ghz. They are designed in a compact housing and SMA or 2.92mm connectors are used. Input connector can be SMA or 2.92mm male or female. The isolation of the resistive divider is equal to insertion loss which is 6.0 dB for the 2 way divider.


Part
Number
PDF-Data
Frequency
Range
GHz
Insertion
Loss
dB Max
Amplitude
Balance
dB Max
Isolation
dB Min
Phase
Balance
deg. Max
VSWR
Max
Input
Power
watts Max
ADD
TO CART
*
2-way SMA, 2.92mm connectors Input= Male Outline-R2M
Outline-R2M

SP10R2M DC-12.4 1.0 0.4 - 3 1.30:1 0.5 ORDER
SP11R2M DC-20.0 1.7 0.6 - 6 1.40:1 0.5 ORDER
SP12R2M DC-30.0 1.8 0.6 - 5 1.60:1 0.5 ORDER
SP13R2M DC-40.0 2.5 0.6 - 8 1.60:1 0.5 ORDER
2-way SMA, 2.92mm connectors Input= Female Outline-R2F
Outline-R2F

SP10R2F DC-12.4 1.0 0.4 - 3 1.30:1 0.5 ORDER
SP11R2F DC-20.0 1.7 0.6 - 6 1.40:1 0.5 ORDER
SP12R2F DC-30.0 1.8 0.6 - 5 1.60:1 0.5 ORDER
SP13R2F DC-40.0 2.5 0.6 - 8 1.60:1 0.5 ORDER
Splitting loss for 2-way resistive divider is 6.0 dB
4-way SMA, 2.92mm connectors Input= SMA-Male Outline-R4M
Outline-R4M

SP10R4M DC-20.0 2.5 0.5 - 6 1.60:1 0.5 ORDER
4-way SMA, 2.92mm connectors Input= Female Outline-R4F
Outline-R2F

SP10R4F DC-20.0 2.5 0.5 - 6 1.60:1 0.5 ORDER
SP11R4F DC-27.0 3.5 0.6 - 8 1.60:1 0.5 ORDER
SP13R4F DC-40.0 3.5 0.6 - 10 1.70:1 0.5 ORDER
Splitting loss for 4-way resistive divider is 12.0 dB
*
- Input Power rating is for load VSWR better than 1.20:1.
- Custom and optimized designs are available.
For Special applications or engineering questions call the sales office at 973-706-8475 or e-mail us at E-MAIL and we shall respond to you promptly.
Displaying 1 to 12 (of 12 Products)
Qty. Product Image Product Name Price
In Stock: 15 (image for) SP10R4M Resistive power divider 4-way DC-20 Ghz Input SMA Male

SP10R4M Resistive power divider 4-way DC-20 Ghz Input SMA Male

Resistive power divider 4 way DC-20 Ghz. Input SMA Male and outputs SMA female. Total loss is the 12 dB splitting loss plus insertion loss. Resistive power dividers have poor isolation between ports...
$425.00
... more info
In Stock: 4 (image for) SP13R4F Resistive power divider 4-way DC-40 Ghz 2.92mm

SP13R4F Resistive power divider 4-way DC-40 Ghz 2.92mm

Resistive power divider 4 way DC-40 Ghz. Input 2.92mm female and outputs 2.92mm female. Total loss is the 12 dB splitting loss plus insertion loss. Resistive power dividers have poor isolation...
$725.00
... more info

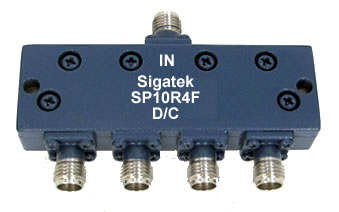

In Stock: 11 (image for) SP10R4F Resistive power divider 4-way DC-20 Ghz

SP10R4F Resistive power divider 4-way DC-20 Ghz

Resistive power divider 4 way DC-20 Ghz. Input SMA female and outputs SMA female. Total loss is the 12 dB splitting loss plus insertion loss. Resistive power dividers have poor isolation between...
$415.00
... more info
In Stock: 5 (image for) SP11R4F Resistive power divider 4-way DC-27 Ghz

SP11R4F Resistive power divider 4-way DC-27 Ghz

Resistive power divider 4 way DC-27 Ghz. Input 2.92mm female and outputs 2.92mm female. Total loss is the 12 dB splitting loss plus insertion loss. Resistive power dividers have poor isolation...
$475.00
... more info
In Stock: 5 (image for) SP10R2M Resistive power divider 2-way DC-12.4 Ghz

SP10R2M Resistive power divider 2-way DC-12.4 Ghz

Resistive power divider 2 way DC-12.4 Ghz. Input SMA male and outputs SMA female. Total loss is the 6 dB splitting loss plus insertion loss. Resistive power dividers have no isolation between ports...
$225.00
... more info
In Stock: 16 (image for) SP11R2M Resistive power divider 2-way DC-20.0 Ghz

SP11R2M Resistive power divider 2-way DC-20.0 Ghz

Resistive power divider 2 way DC-20 Ghz. Input SMA male and outputs SMA female. Total loss is the 6 dB splitting loss plus insertion loss. Resistive power dividers have no isolation between ports and...
$255.00
... more info
In Stock: 9 (image for) SP12R2M Resistive power divider 2-way DC-30 Ghz

SP12R2M Resistive power divider 2-way DC-30 Ghz

Resistive power divider 2 way DC-30 Ghz. Input 2.92mm male and outputs 2.92mm female. Total loss is the 6 dB splitting loss plus insertion loss. Resistive power dividers have no isolation between...
$295.00
... more info

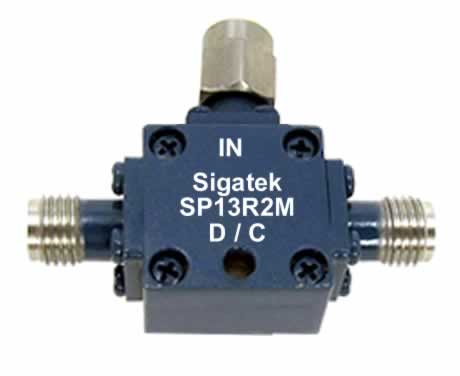

In Stock: 13 (image for) SP13R2M Resistive power divider 2-way DC-40 Ghz

SP13R2M Resistive power divider 2-way DC-40 Ghz

Resistive power divider 2 way DC-40 Ghz. Input 2.92mm male and outputs 2.92mm female. Total loss is the 6 dB splitting loss plus insertion loss. Resistive power dividers have no isolation between...
$355.00
... more info
In Stock: 4 (image for) SP10R2F Resistive power divider 2-way DC-12.4 Ghz

SP10R2F Resistive power divider 2-way DC-12.4 Ghz

Resistive power divider 2 way DC-12.4 Ghz. Input SMA female and outputs SMA female. Total loss is the 6 dB splitting loss plus insertion loss. Resistive power dividers have no isolation between ports...
$225.00
... more info
In Stock: 18 (image for) SP11R2F Resistive power divider 2-way DC-20.0 Ghz

SP11R2F Resistive power divider 2-way DC-20.0 Ghz

Resistive power divider 2 way DC-20 Ghz. Input SMA female and outputs SMA female. Total loss is the 6 dB splitting loss plus insertion loss. Resistive power dividers have no isolation between ports...
$255.00
... more info
In Stock: 6 (image for) SP12R2F Resistive power divider 2-way DC-30 Ghz

SP12R2F Resistive power divider 2-way DC-30 Ghz

Resistive power divider 2 way DC-30 Ghz. Input 2.92mm female and outputs 2.92mm female. Total loss is the 6 dB splitting loss plus insertion loss. Resistive power dividers have no isolation between...
$295.00
... more info
In Stock: 17 (image for) SP13R2F Resistive power divider 2-way DC-40 Ghz

SP13R2F Resistive power divider 2-way DC-40 Ghz

Resistive power divider 2 way DC-40 Ghz. Input 2.92mm female and outputs 2.92mm female. Total loss is the 6 dB splitting loss plus insertion loss. Resistive power dividers have no isolation between...
$355.00
... more info
