Adapters Coaxial

Adapter Type Panel Mount Option Frequency Part Number
Right Angle Adapters
SMA-SMA Right Angle   27  Ghz SAR61 - SAR63

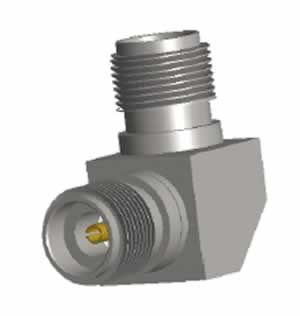

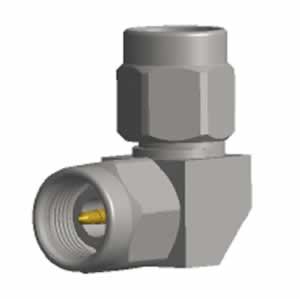

2.92mm-2.92mm Right Angle   40  Ghz SAR51 - SAR53
2.4mm-2.4mm Right Angle   50  Ghz SAR71- SAR73
In Line Series Type
Panel Mount 4 Hole Flange Panel Mount 65  Ghz
Bulkhead Mount Bulkhead 40  Ghz
SMA - SMA Panel Mount 27  Ghz SA100 - SA104
3.5mm-3.5mm Panel Mount 33  Ghz SA105 - SA108
2.92mm-2.92mm Panel Mount 40  Ghz SA109 - SA115
2.4mm-2.4mm Panel Mount 50  Ghz SA116 - SA119
1.85mm-1.85mm   65  Ghz SA120 - SA122
N-N Panel Mount 18  Ghz SA123 - SA127
TNCA-TNCA   18  Ghz SA131 - SA133
In Between Series Type
APC-7 or 7mm   18  Ghz SA134 - SA137
N-3.5mm   18  Ghz SA138- SA141
N-2.92mm   18  Ghz SA142 - SA145
N-2.4mm   18  Ghz SA146 - SA149
N-TNCA   18  Ghz SA154 - SA157
N-SMA   18  Ghz SA158 - SA164
3.5mm-2.92mm Panel Mount 33  Ghz SA165 - SA169
3.5mm-2.4mm   33  Ghz SA170 - SA173
3.5mm-1.85mm   33  Ghz SA174 - SA177
3.5mm-SMA   33  Ghz SA178 - SA181
2.92mm-2.4mm Panel Mount 40  Ghz SA182 - SA186
2.92mm-1.85mm   40  Ghz SA187 - SA190
2.92mm-SMA   27  Ghz SA191 - SA194
2.4mm-1.85mm   50  Ghz SA195 - SA198
2.4mm-SMA   27  Ghz SA199 - SA202
TNC-SMA   11  Ghz SA203 - SA206
TNCA-SMA   18  Ghz SA207 - SA210
BNC In Between and Series Type DC-8 Ghz
BNC-BNC   8  Ghz SA301-303
BNC-N   8  Ghz SA304-307
BNC-SMA   8  Ghz SA308-311

Microwave RF coaxial adapters BNC, SMA, 2.92mm, 2.4mm, 1.85mm, N, TNC, APC-7

Coaxial adapters 2.92mm have same geometry as K or SMK adapters

Coaxial adapters 2.4mm have same geometry as 1.85mm or V adapters

In series and in between series microwave adapters

Panel mount flange 4 Hole coaxial adapters

Series or between series Adapters are cost effective solutions for applications that require the mating of two different RF interfaces while maintaining good electrical performance. SigaTek offers a wide selection of these adapters to meet any challenging application for frequencies up to 65 Ghz.
SigaTek offers a variety of microwave RF adapters in series male-female and in between series male-female. These adapters are designed for high performance applications with SU303 Polished Passivated stainless steel body and the Center Condact is Beryllium Copper Gold plated.

RF coaxial adapters up to 65 Ghz SMA, 2.92mm, 2.4mm, 1.85mm, N, TNC,APC-7

New Products For October - Adapters Coaxial

(image for) SA196 Coaxial Adapter 2.4mm Male to 1.85mm Female
SA196 Coaxial Adapter 2.4mm Male to 1.85mm Female
$265.00 (image for) SA121 Coaxial Adapter 1.85mm Male to 1.85mm Female
SA121 Coaxial Adapter 1.85mm Male to 1.85mm Female
$265.00 (image for) SA120 Coaxial Adapter 1.85mm Female to 1.85mm Female
SA120 Coaxial Adapter 1.85mm Female to 1.85mm Female
$265.00 (image for) SA187 Coaxial Adapter 1.85mm Female to 2.92mm Female
SA187 Coaxial Adapter 1.85mm Female to 2.92mm Female
$229.00
(image for) SA195 Coaxial Adapter 2.4mm Female to 1.85mm Female
SA195 Coaxial Adapter 2.4mm Female to 1.85mm Female
$265.00 (image for) SA197 Coaxial Adapter 2.4mm Female to 1.85mm Male
SA197 Coaxial Adapter 2.4mm Female to 1.85mm Male
$265.00 (image for) SA198 Coaxial Adapter 2.4mm Male to 1.85mm Male
SA198 Coaxial Adapter 2.4mm Male to 1.85mm Male
$265.00 (image for) SA122 Coaxial Adapter 1.85mm Male to 1.85mm Male
SA122 Coaxial Adapter 1.85mm Male to 1.85mm Male
$265.00
