Specifications:
Impedance= 50 ohms
Frequency= DC - 40 Ghz
Durability = 500 cycles
Temperature Range= -55 C - +165 C
Marerial / Finish
Housing: Stainless Steel SU303 Polished / Passivated
Center Condact: Beryllium Copper Gold plated (MIL-G-45204)
Insulators: PEI
2.92mm Interfaces PER MIL-STD-348A
1.85mm Interfaces PER IEC-61169
2.92mm Female to 1.85mm Female Adapter
2.92mm Male to 1.85mm Female Adapter
2.92mm Female to 1.85mm Male Adapter
2.92mm Male to 1.85mm Male Adapter
SigaTek adapters and connectors are manufactured to precise RF and microwave industry specifications.
Series or between series Adapters are cost effective solutions for applications that require the mating
of two different RF interfaces while maintaining good electrical performance. Sigatek microwave 2.92mm to 1.85mm
adapters covers a wide variety of mating combinations. Impedance is 50 ohm and these 2.92mm to 1.85mm adapters
can be used up to 40 Ghz.
Stainless Steel SU303 Polished / Passivated is used for the housing and for the center pin Beryllium Copper Gold plated(MIL-G-45204)
Genter varieties available are: female to female, female to male, male to female or male to male.
Contact Sigatek by e-mail at
sales@sigatek.com or phone at 973-706-8475 for any additional questions.
For Adapters in Stock Scroll down or Request a Quote for a Quick Delivery!
2.92mm - 1.85mm Coaxial Adapters, Between-Series
 |
2.92mm Female to 1.85mm Female
|
Part Number |
VSWR |
Add To Cart |
PDF |
|
|
SA187 |
1.20:1 |
ORDER |
|
 |
2.92mm Male to 1.85mm Female
|
Part Number |
VSWR |
Add To Cart |
PDF |
|
|
SA188 |
1.20:1 |
ORDER |
|
 |

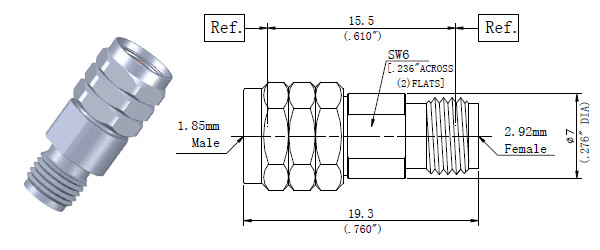

2.92mm Female to 1.85mm Male
|
Part Number |
VSWR |
Add To Cart |
PDF |
|
|
SA189 |
1.20:1 |
ORDER |
|
 |
2.92mm Male to 1.85mm Male
|
Part Number |
VSWR |
Add To Cart |
PDF |
|
|
SA190 |
1.20:1 |
ORDER |
|
